Sheet Metal Fabrication Services

Short Description:


  • Min. Order Quantity: Min 1 Piece/Pieces.
  • Supply Ability: 10000-2 Million Piece/Pieces per Month.
  • Roughness: According to Customers' Request.
  • File Formats: CAD, DXF, STEP, PDF, and other formats are acceptable.
  • FOB Price: According to Customers' Drawing and Purchasing Qty.
  • Process Type: Stamping, Punching, Laser Cutting, Bending, etc.
  • Materials Available: Aluminum, Stainless Steel, Carbon Steel, Titanium, Brass, Copper, Alloy, Plastic, etc.
  • Surface Treatment: Zinc plating, Anodization, Chemical film, Powder coating, Passivation, Sand blasting, Brushing & polishing, etc.
  • Inspection Equipment: CMM, Images measuring instrument, Roughness meter, slide caliper, micrometers, gauge block, dial indicator, thread gauge, universal angle rule.
  • Sample Available: Acceptable, provided within 5 to 7 working days accordingly.
  • Packing: Suitable Package for long time Seaworthy or Airworthy Transportation.
  • Port of loading: Dalian, Qingdao, Tianjin, Shanghai, Ningbo, etc., according to Customers' Request.
  • Lead Time: 3-30 working days according to the different requirements after receiving the Advanced Payment.
  • Product Detail

    Video

    Product Tags

    Bending Importance of Sheet Metal Works

    Although the sheet metal bending seems extremely simple, it hides a series of rules and technology that allows you to realize simple or extremely complex shapes. The sheet metal bending is one of the most common processes in manufacturing industry.

    Similar to the forming process, the bending works create a change of direction in sheet metal. For example, transform a flat sheet metal into an angular sheet. In fact, through the use of a CNC press, a mold, bending machine or any other machines, the sheet metal can reach the shape of a corner.

    Sheet metal fabrications is a process that allows you to realize simple or extremely complex shapes and which can be applied on a wide range of metals: from iron to copper, from brass to aluminum, from stainless steel to other special alloys.

    When you need to decide the kind of bending, you must take into account: the thickness of the metal, the type of curve, the angle of bend, and workpiece dimensions and other related important factors.

    A general rule about this could be: the larger is the bending, the less acute degree between upper and lower mold. Concerning issues that we have just mentioned, you can choose different types of bending.

    There are many factors that can affect the result of sheet metal bending. For example, the most important are:
    1. The metal properties
    2. The stress caused from the previous process
    3. The kind of the edges you want to realize
    4. The length and the thickness of the work piece
    5. The processing temperature
    There are a lot of advantages of Sheet Metal Fabrication, including material selection (Aluminum, Copper, Stainless Steel and others), finishing selection (Bead Blasting, Anodizing, Plating, Powder Coating, etc.), thickness selection (Based on gauges), durability, scalability, quick turnaround, etc. For more details, please see below chart.

    img (2)

    NO

    ITEMS

    DETAILS

    1

    Material

    Aluminum, Steel, Brass, Copper, Stainless steel, Plastic, POM, Derlin, Titanium Alloy, etc.

    2

    Surface Treatment

    Zinc plating, Anodization, Chemical film, Powder coating, Passivation, Sand blasting, Brushing & polishing, etc.

    3

    Processing Equipment

    Cnc Machining Center, CNC Lathe, Grinding Machine, Automatic Lathe Machine, Lathe Machine, Milling Machine, EDM, etc.

    4

    Inspection Equipment

    3D CMM; 2.5D images measuring instrument, Roughness meter, slide caliper, micrometers, gauge block, dial indicator, thread gauge, universal angle rule, etc.

    5

    Our Services

    CNC Machining, Milling, Turning, Grinding, Stamping, Punching, and assembly, etc.

    6

    QC System

    100% inspection before shipment, Third Party inspection available upon request.

    7

    Packing

    Foam, Carton, Wooden boxes, as customized requirements.

    8

    Payment Terms

    30% T/T in advance, 70% balance before shipment.

    9

    Product Scope

    CNC machining/turning parts, Jig & Fixture Design and Make, Sheet Metal Parts and Stamping Parts.

    10

    Application

    Automation machine, industrial machine, electric appliance, Auto Parts, Furniture Parts, Machinery Parts, Light fittings, etc.

    Product Description

    Precision Machining Parts
    Precision Machining Parts

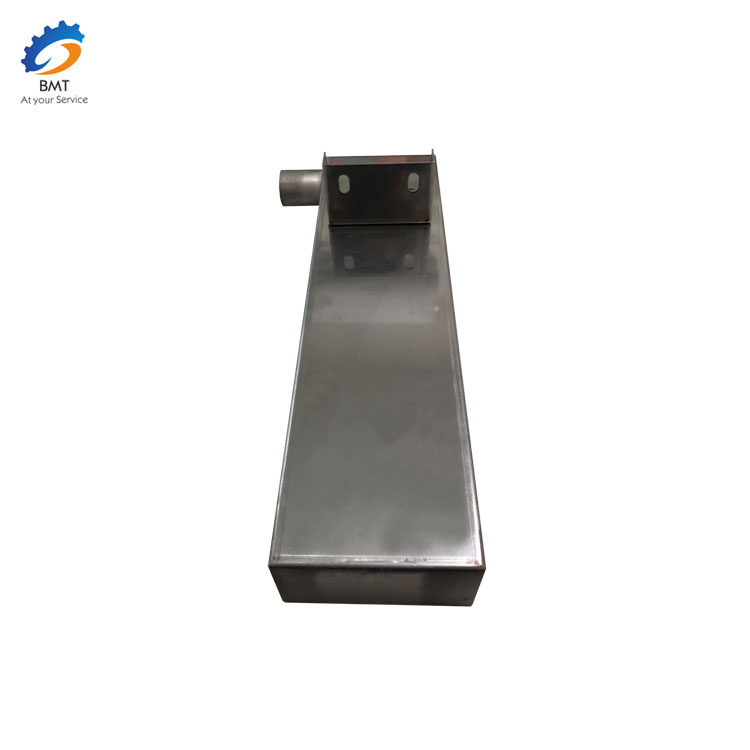

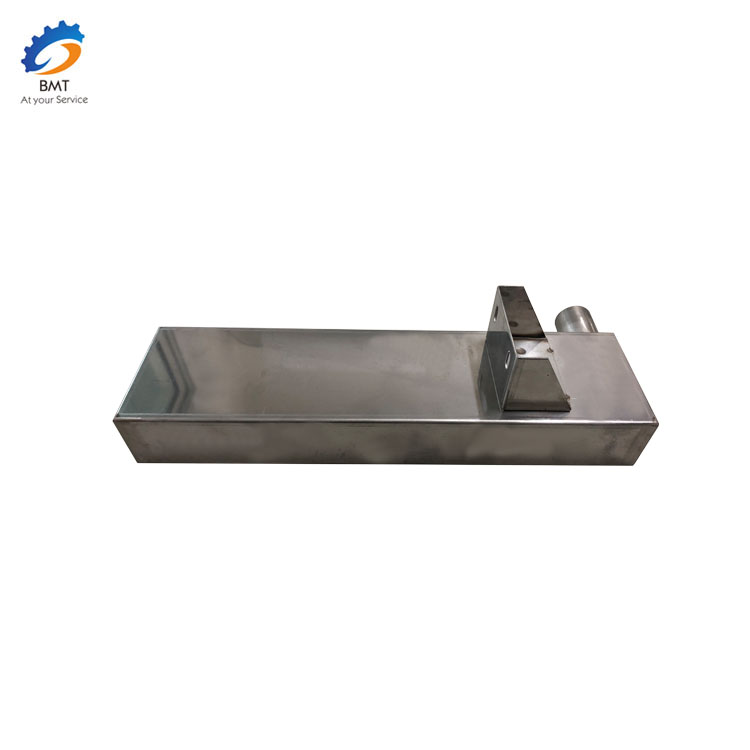

    Sheet Metal Fabrication Services (4) Sheet Metal Fabrication Services (5) Sheet Metal Fabrication Services (2) Sheet Metal Fabrication Services (3) Sheet Metal Fabrication Services (1) Sheet Metal Fabrication Services (6)

    Some Products We Make

    other products
    Brass Stamping
